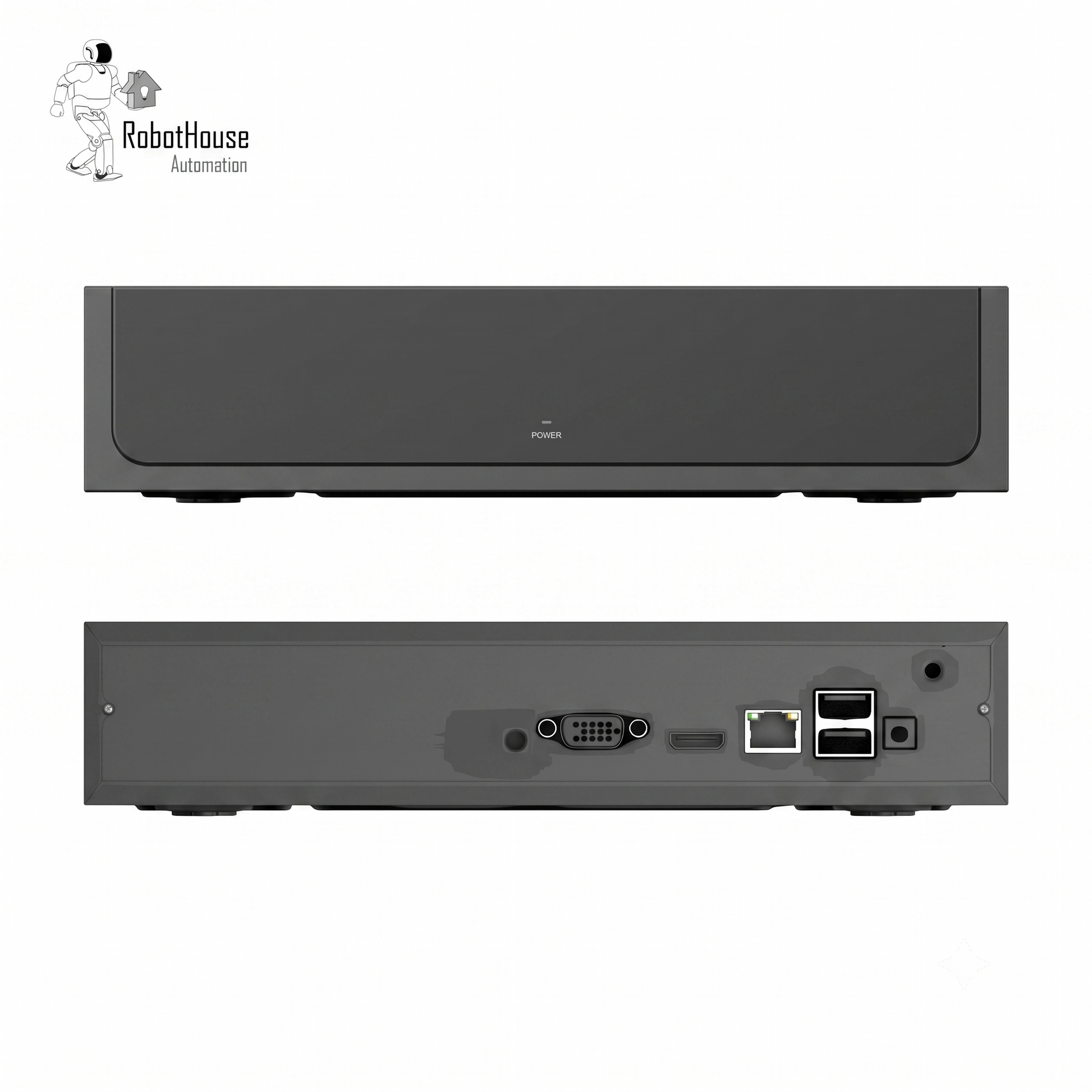

16-CHANNEL NON-POE NETWORK VIDEO RECORDER (NVR) - HDD not included

Key Features

• Supports up to 16 IP cameras through network connection
• Supports up to 12MP (4K) ultra HD recording
• Compatible with 8MP/5MP/4MP HD IP cameras
• Embedded Linux operating system for reliable performance and stability
• Supports H.265+/H.265/H.264 video compression for efficient storage usage
• HDMI and VGA simultaneous video output
• Remote viewing via mobile app and client software
• Plug-and-play IP camera auto detection
• Motion detection recording and alarm linkage
• Supports up to 8TB SATA hard drive (HDD not included)
• ONVIF compatible for wide-range camera compatibility

Video Performance

• Maximum recording resolution: 3840×2160 (4K Ultra HD)
• Supports up to 16-channel IP camera access
• Supports 4K, 8MP, 5MP, and 4MP IP camera inputs
• Dual-stream technology for optimized network bandwidth and remote viewing
• Up to 280Mbps incoming bandwidth capacity

Playback & Recording

• Local playback support 1CH 8MP playback and 4CH 4MP simultaneous playback
  • Scheduled recording and motion-trigger recording
  • Continuous, event-based, and manual recording modes
  • Synchronized audio and video recording and playback

Network & Remote Access

• RJ45 Ethernet port with 10/100Mbps adaptive network connection
• Supports TCP/IP, IPv4, DHCP, RTSP, ONVIF, P2P, SMTP, NTP protocols
• Mobile app remote monitoring with quick connection setup
• Supports client software for centralized remote management
• Compatible with third-party ONVIF IP cameras

Interfaces

• 1×HDMI Output
• 1×VGA Output
• 2×USB 2.0 Ports
• 1×SATA Interface for HDD storage
• Rear USB support mouse control, system upgrade, backup import/export

Storage & Backup

• Supports up to 8TB HDD (HDD not included)
• USB backup support via flash drive or external HDD
• Efficient H.265 compression helps maximize recording storage time

System & Environment

• Embedded Linux operating system
• Built-in watchdog protection for enhanced system stability
• Operating Temperature: -10°C to +55°C
• Working Humidity: 10% – 90%
• Power Supply: DC 12V/2A
• Optional built-in buzzer support

Front Panel Indicators

• Power status
• Recording status
• Network status indicator lights

Warranty & Support

• 1- Year Warranty for reliable performance and customer support
