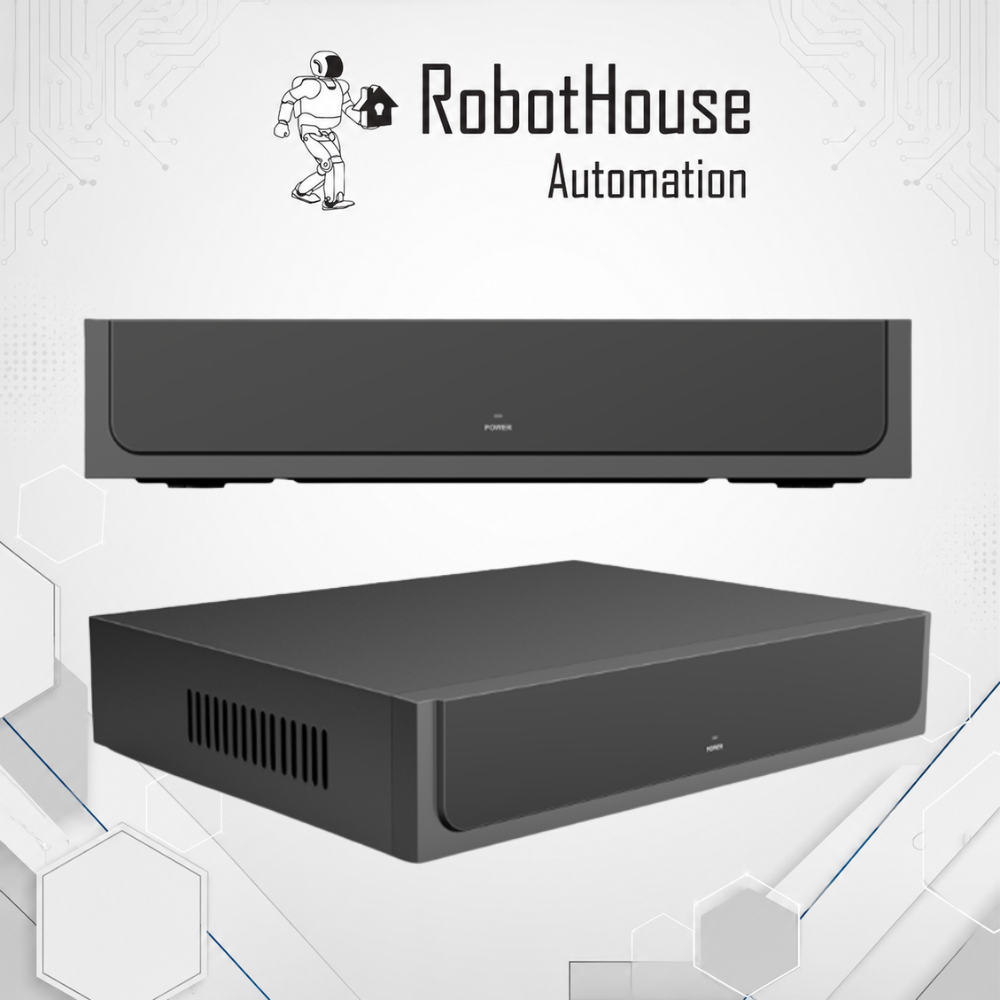

16-Port PoE Network Video Recorder (NVR)16 CHANNEL

Designed for reliable commercial and residential surveillance applications, this 16-Port PoE NVR delivers high-performance video recording, remote monitoring, and intelligent storage management with advanced H.265+ compression technology.

Key Features

• Supports up to 16 PoE IP cameras

• Supports up to 12MP (4K) ultra HD recording

• Compatible with 8MP / 5MP / 4MP HD cameras

• Embedded Linux system with stable hardware decoding

• Supports H.265+ / H.265 / H.264 video compression

• HDMI & VGA simultaneous video output

• Remote viewing via mobile app and client software

• Plug-and-play camera auto detection

• Motion detection recording & alarm linkage

• Supports up to 8TB SATA hard drive

• ONVIF compatible for broad camera integration

Video Performance

• Max recording resolution: 3840 × 2160 (4K)

• Supports:

o 8CH 4K IPC access

o 16CH 5MP IPC access

• Dual-stream support for optimized bandwidth

• 280Mbps incoming bandwidth capacity

Playback & Recording

• Local playback support:

o 1CH 8MP playback

o 4CH 4MP simultaneous playback

• Scheduled recording and motion-trigger recording

• Audio & video synchronized recording and playback

Network & Remote Access

• RJ45 Ethernet interface with 10/100Mbps adaptive network

• Supports:

o TCP/IP

o IPv4

o DHCP

o RTSP

o ONVIF

o P2P

o SMTP

o NTP

• Mobile app preview with fast remote connection

• Supports Videolink client remote management software

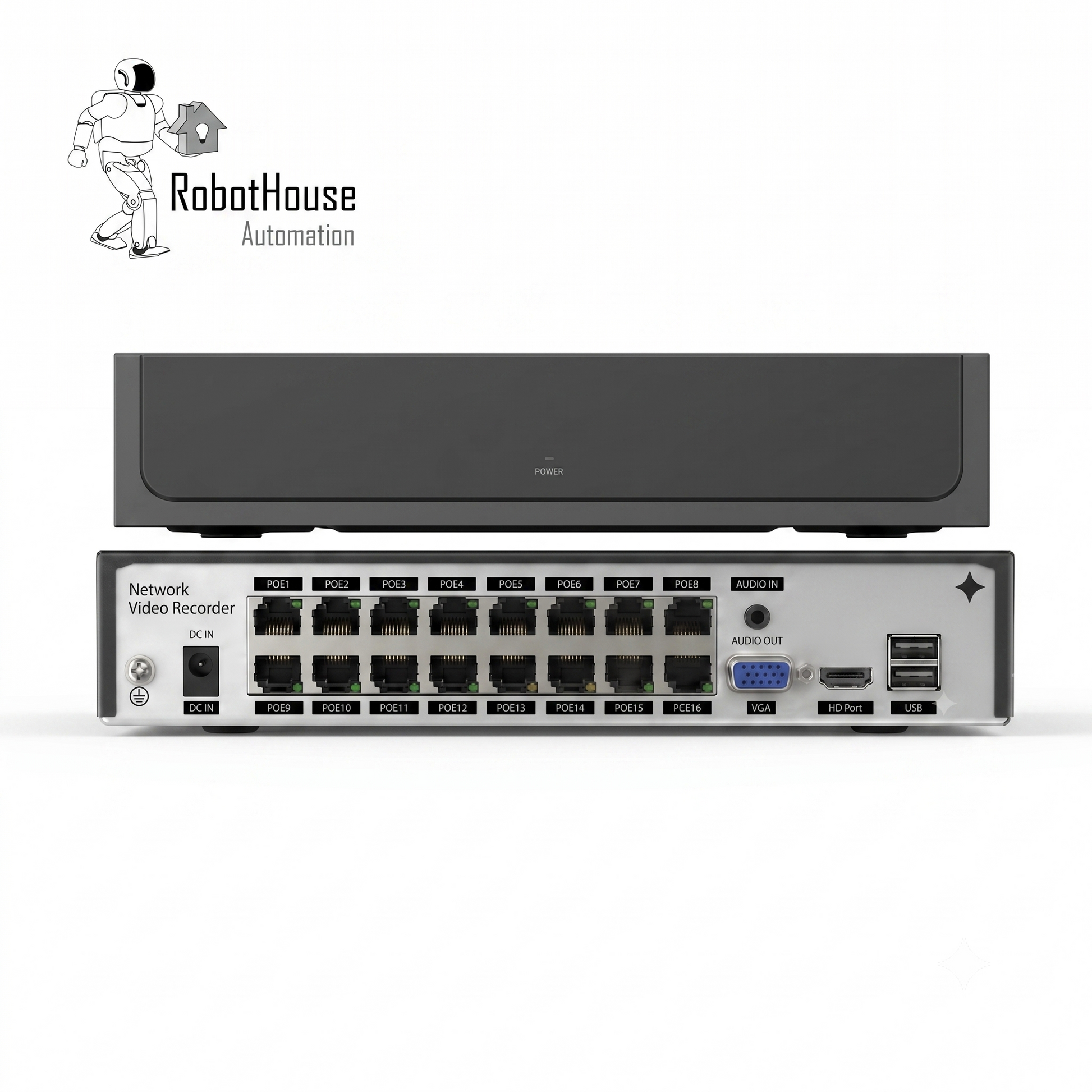

Interfaces

• 1 × HDMI Output

• 1 × VGA Output

• 2 × USB 2.0 Ports

• 1 × SATA Interface

• Rear USB supports:

o Mouse control

o System upgrade

o Backup import/export

Storage & Backup

• Supports up to 8TB HDD

• USB backup support via flash drive or external HDD

System & Environment

• Embedded Linux operating system

• Built-in watchdog protection for system stability

• Operating Temperature: -10°C to +55°C

• Working Humidity: 10% – 90%

• Power Supply: DC 12V / 2A

• Optional built-in buzzer support

Front Panel Indicators

• Power status

• Recording status

• Network status indicator lights
