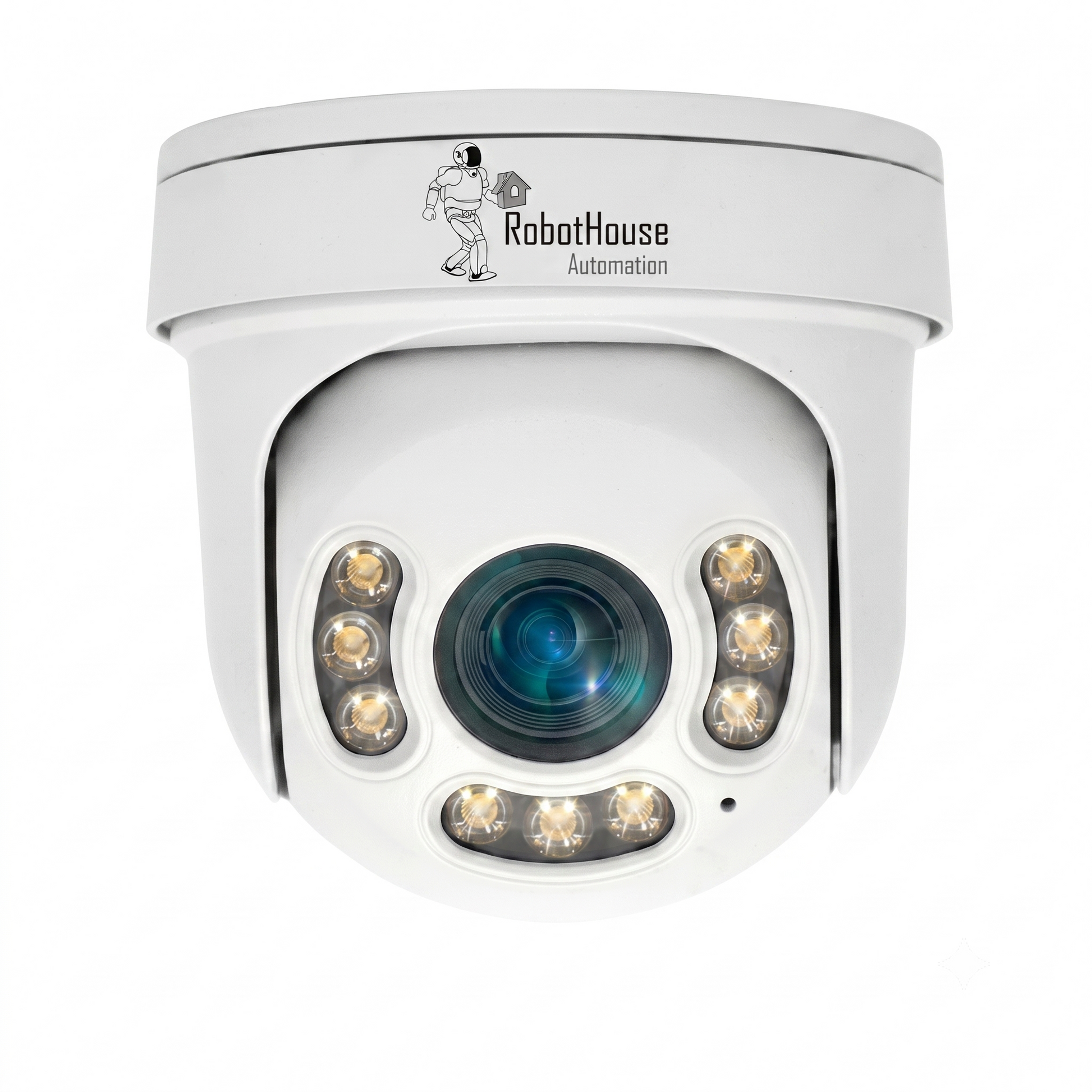

5MP 5X OPTICAL ZOOM IP CAMERA

KEY FEATURES

• 5X Optical Zoom, Auto Focus 1/3” CMOS 5.0MP
• True Day/Night, 3D DNR, Digital WDR, Backlight Compensation, Auto Gain Control (AGC),
• 3D Intelligent Positioning vertical 90°, horizon 355°
• Support the P2P on Android, IOS
• Support ONVIF, H.265/H.264 main profile and dual-stream encoding, simultaneous video streams
• Standard SDK, CGI, easily integrated with other digital systems, colorful videos
• Model Number: CV-XIP5935X
• Image Sensor: 5.0M Pixels Progressive Scan CMOS
• Chipset: Mstar SSC377D+GC4653, 1/3” CMOS
• Signal System: PAL/NTSC
• Focal Length: 2.8-12mm, 5X
• IR LEDs: 9pcs IR LED, 9pcs white LED, IR distance 35m
• Aperture Range: F1.7~F3.0
• Angle of View: 113.9° (wide)/34.1°(tele)
• Zoom Speed: approximately 3s (Optical Wide-Tele)
• Image: 2592x1944
  Frame Rate: 2592x1944@25fps, 2560x1440@25fps, 3MP/2048x1536@20fps, 1080P/720P/D1@25fps
• Minimum Illumination: 0.01Lux@(F1.6, AGC ON) B/W: 0.001Lux@(F1.6, AGC ON)
• Wide Dynamic Range: Digital WDR, ≥100dB
• S/N Ratio: ≥50dB (AGC OFF)
• AGC: Auto/Manual
• White Balance: auto/manual/ATW/indoor/outdoor/daylight lamp/sodium lamp
• Digital Noise Reduction: DNR, 3DNR
• Exposure Mode: auto/manual/shutter mode (shutter range variable)
• Shutter Speed: 1/2-1/20,000s
• Day&Night: day/night/external control (IR Cut Filter)
• PoE, TF card slot (128G max), two-way audio
• 3D Positioning: click centering, zoom by mouse dragging
• Streams: dual streams
• Bitrate: CBR/VBR, Bitrate: 32Kbps~10Mbps variable
• Video Compression: H.265/H.264 main profile
• Audio Compression: G711
• OSD: support zoom, camera name, time display, adjustable OSD position
• P2P: Android, IOS
• Intelligent Alarm: humanoid detection, vehicle detection, motion detection, shadow alarm, network cable break, IP address conflict
• Privacy Zone Masking: 4 privacy masks programmable
• Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P, ONVIF2.6
• Power Supply: DC12V2A
• Package Size: 150x150x130mm
• Working Temperature: -30°C ~60°C, Humidity≤90%RH
