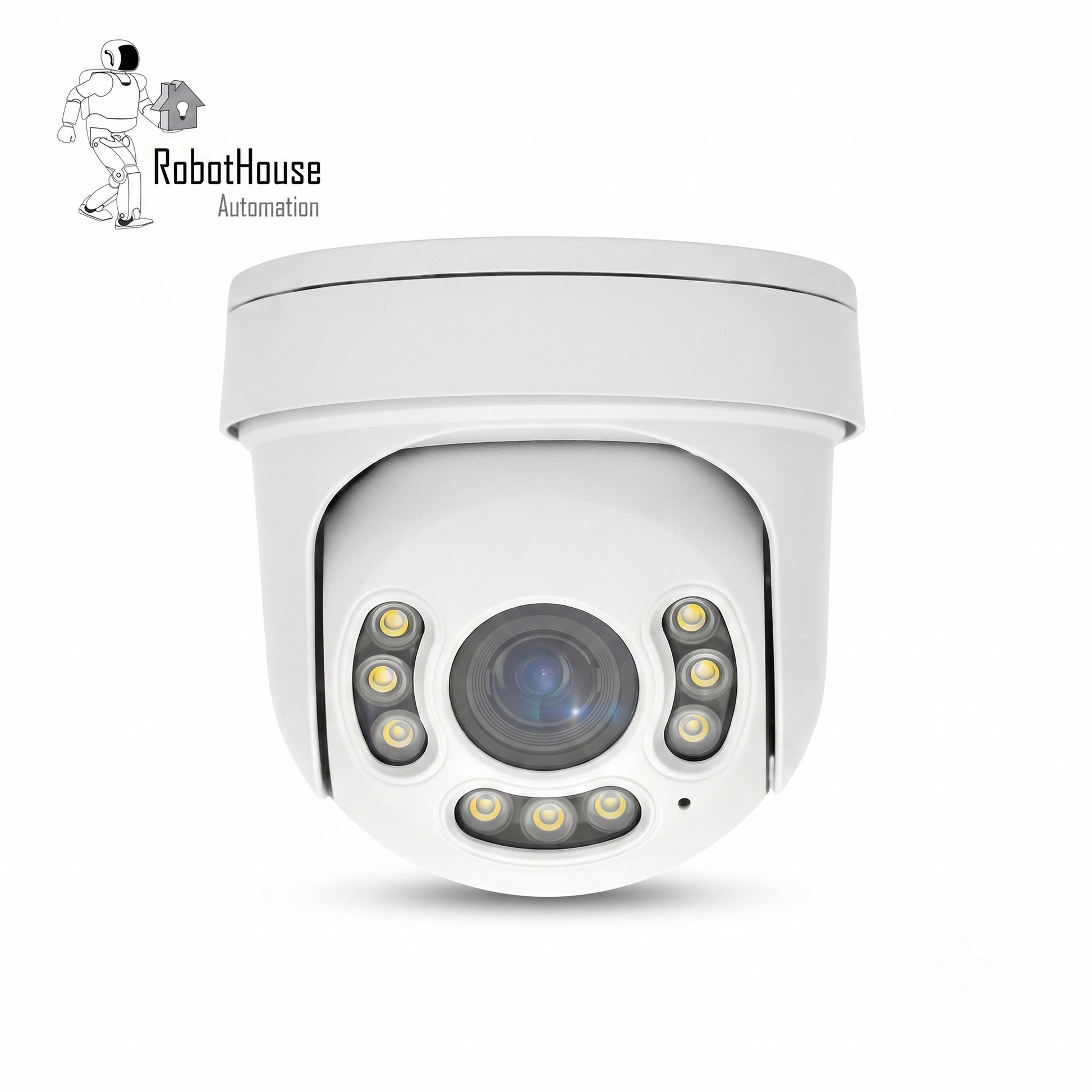

8MP 4K 5X OPTICAL ZOOM IP CAMERA

KEY FEATURES

• 5X Optical Zoom, Auto Focus 1/2.7” CMOS 8.0MP

• True Day/Night, 3D DNR, Digital WDR, Backlight Compensation, Auto Gain Control (AGC),

• 3D Intelligent Positioning vertical 90°, horizon 355°

• Support the P2P on Android, IOS

• Support ONVIF, H.265/H.264 main profile and dual-stream encoding, simultaneous video streams

• Standard SDK, CGI, easily integrated with other digital systems, colorful videos

• Image Sensor: 8.0M Pixels Progressive Scan CMOS

• Chipset: H.265+, SSC378DE+GC8613, 1/2.7" CMOS

• Signal System: PAL/NTSC

• Focal Length: 2.8-12mm, 5X

• IR LEDs: 9pcs IR LED, 9pcs white LED, IR distance 35m

• Aperture Range: F1.7~F3.0

• Angle of View: 113.9° (wide)/34.1°(tele)

• Zoom Speed: approximately 3s (Optical Wide-Tele)

• Image: 3840x2160
  Frame Rate: 20@FPS(3840x2160), 25FPS@(3072x2048), 30FPS@(2592x1944, 2560x1440, 2304x1296, 1920x1080, 1280x720), substream: 25FPS@720x480, D1, VGA, 640x360

• Minimum Illumination: 0.01Lux@(F1.6, AGC ON) B/W: 0.001Lux@(F1.6, AGC ON)

• Wide Dynamic Range: Digital WDR, ≥100dB

• S/N Ratio: ≥50dB (AGC OFF)

• AGC: Auto/Manual

• White Balance: auto/manual/ATW/indoor/outdoor/daylight lamp/sodium lamp

• Digital Noise Reduction: DNR, 3DNR

• Exposure Mode: auto/manual/shutter mode (shutter range variable)

• Shutter Speed: 1/2-1/20,000s

• Day&Night: day/night/external control (IR Cut Filter)

• PoE, TF card slot (128G max), two-way audio

• 3D Positioning: click centering, zoom by mouse dragging

• Streams: dual streams

• Bitrate: CBR/VBR, Bitrate: 32Kbps~10Mbps variable

• Video Compression: H.265/H.264 main profile

• Audio Compression: G711

• OSD: support zoom, camera name, time display, adjustable OSD position

• P2P: Android, IOS

• Intelligent Alarm: humanoid detection, vehicle detection, motion detection, shadow alarm, network cable break, IP address conflict

• Privacy Zone Masking: 4 privacy masks programmable

• Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P, ONVIF2.6

• Power Supply: DC12V2A

• Package Size: 150x150x130mm

• Working Temperature: -30°C ~60°C, Humidity≤90%RH
