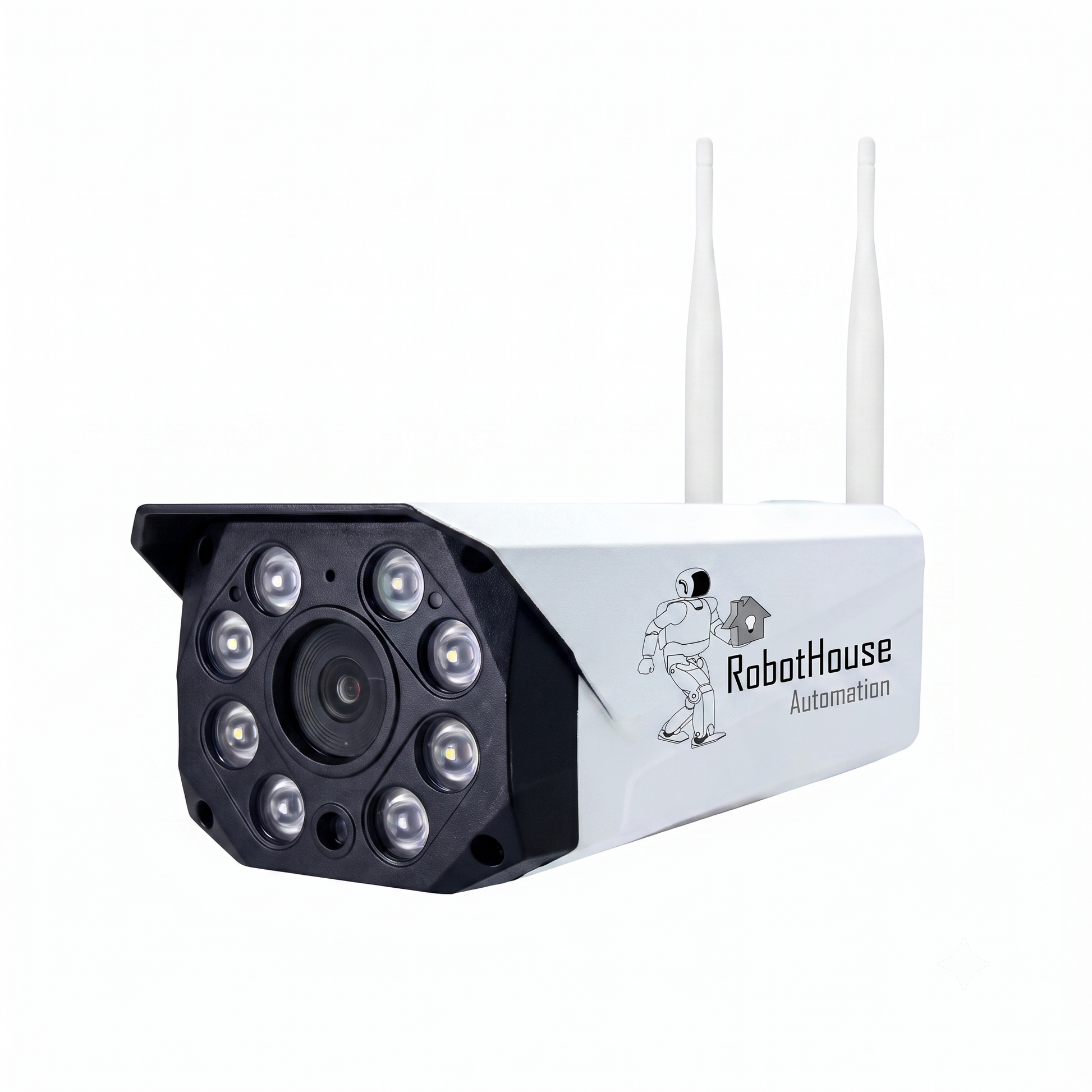

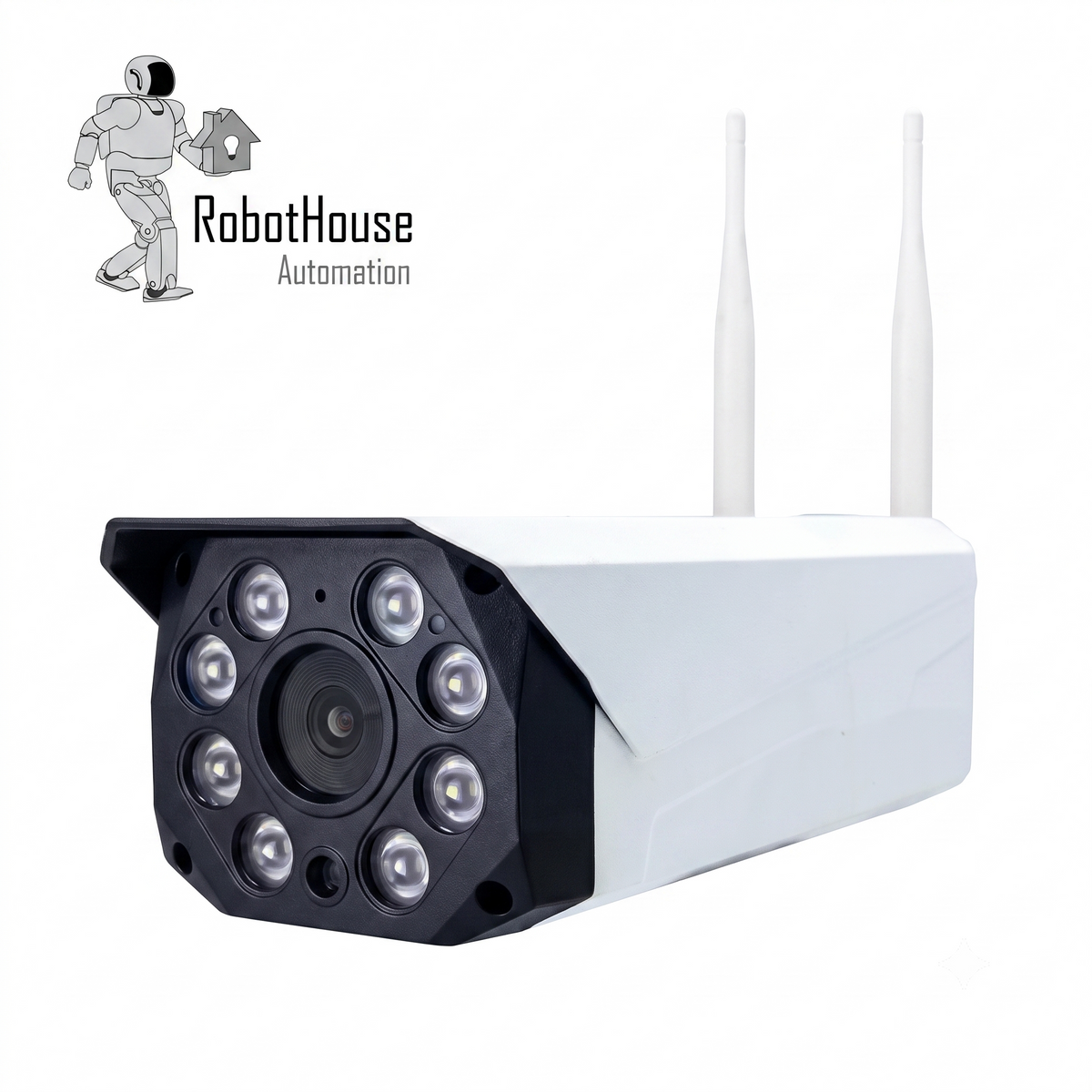

4G IR AND WHITE LED COLORFUL IP CAMERA | 5MP | Full Metal Case

KEY FEATURES

Camera

• Imaging Sensor: 5MP, H.265+, Mstar SSC377D+GC4653, 1/3″CMOS
• Scanning Mode: Progressive scanning
• Illumination: Color 0.01Lux@F1.2, black/white: 0.005Lux@F1.2, IR on 0 lux
• Lens: 5 megapixel 3.6mm, 6mm fixed lens
• Day and Night Switch: IR-CUT dual optical filters auto switch in day and night
• DNR: 3D-DNR
• IR Source: 8pcs IR LED
• Effective Night Vision Distance: 50 meters (measured value without light condition)
• P2P, waterproof (IP66), two-way audio, 4G, SD Card Slot (128G max), FPT

Standard Compression

• Image Compression: H.264
• Video Compression: H.265/H.264, support dual-stream, AVI format, support stream 32Kbps~3.5Mbps adjustable, support CBR/VBR


• Max Image Size: 2592x1944
• Frame Rate: 2592x1944@25fps, 2560x1440@25fps, 3MP/2048x1536@20fps, 1080P/720P/D1@25fps

Function

• Interface Protocol: HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF
• Intelligent Alarm: Motion detection, humanoid detection, shadow alarm, starlight, network cable break, IP address conflict, FTP
• Features: Support WEB configure, support for OSD, support video transmission, support mobile surveillance, support for mobile detection alarm center after the screen pop-up reminders and linkage, supports JPEG capture, provide perfect the SDK development package
• Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image

Basic Parameter

• Power Input: DC 12V±10%
• Power Consumption: 1W (IR off)/9.5W (IR on), 1.1W/9.6W (IR on)
• Work Environment: -40℃~85℃, humidity is less than 95% (no condensation)
