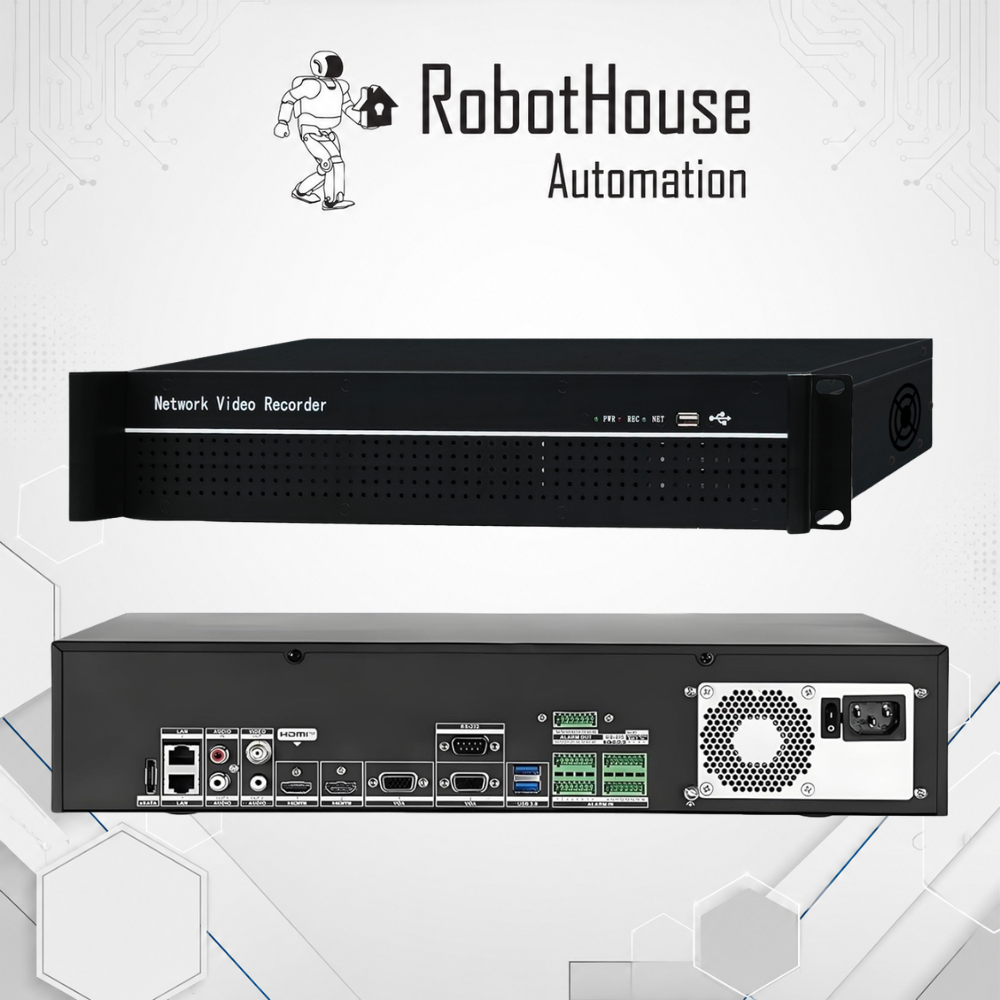

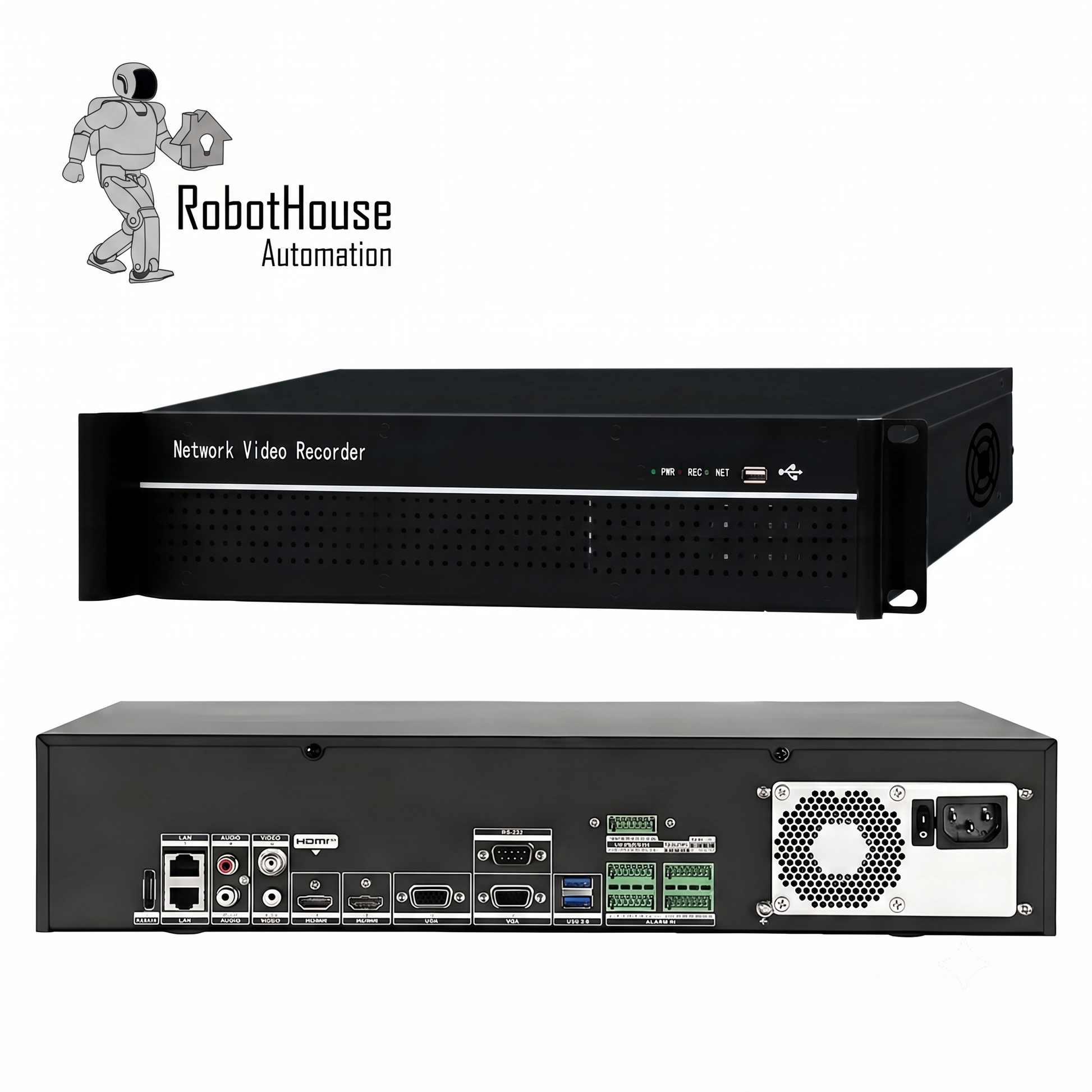

64-Channel Network Video Recorder (NVR)

Built for enterprise-level surveillance applications, this powerful 64-channel NVR delivers ultra HD recording, high-bandwidth performance, intelligent video management, and massive storage capacity for large commercial security systems.

Key Features

• Supports up to 64 IP camera channels
• Compatible with up to 12MP (4K Ultra HD) cameras
• Embedded Linux operating system with stable hardware decoding
• Advanced H.265+ / H.265 / H.264 video compression
• Dual-stream support for optimized remote viewing
• Auto camera detection and plug-and-play configuration
• Motion detection and scheduled recording
• Remote viewing via mobile app and Videolink client software
• ONVIF compatible for flexible camera integration

Video Performance

• Supports:
• 64CH 8MP IPC access
• 36CH 12MP HD IPC access
• Maximum recording resolution: 3840 × 2160
• 320Mbps incoming bandwidth capacity
• Local playback support:
• 2CH 12MP playback
• 4CH 8MP playback
• 8CH 4MP simultaneous playback

Video Outputs

• 1 × HDMI output
• 1 × VGA output
• Simultaneous HDMI & VGA display support

Audio Features

• Standard G.711 audio compression
• Supports synchronized audio and video recording
• HDMI audio/video preview and playback support
• Remote audio and video playback via Videolink

Storage & Backup

• 8 × SATA hard drive interfaces
• Supports up to 14TB per HDD
• Massive storage capacity for long-term video retention
• USB backup support for flash drives and external hard drives

Network & Remote Access

• 1 × RJ45 Ethernet interface (10/100Mbps adaptive)
• Supports:
• TCP/IP
• IPv4
• DHCP
• RTSP
• ONVIF
• P2P
• SMTP
• NTP
• Fast remote access through mobile app and client software
• Supports Videolink cloud services and remote management

Interfaces

• 2 × USB 2.0 ports (rear)
• Supports:
• Mouse control
• USB system upgrades
• Import/export backup

Smart Functions

• Live preview and remote playback
• Motion-trigger recording
• Alarm linkage support
• Videolink cloud and remote management support

System Specifications

• Maximum local users: 16
• Operating Temperature: -10°C to +55°C
• Working Humidity: 10% – 90%
• Power Supply: AC110V–240V (50/60Hz) ATX Power
• Optional built-in buzzer support

Front Panel Indicators

• Power status indicator
• Recording status indicator
• Network status indicator
