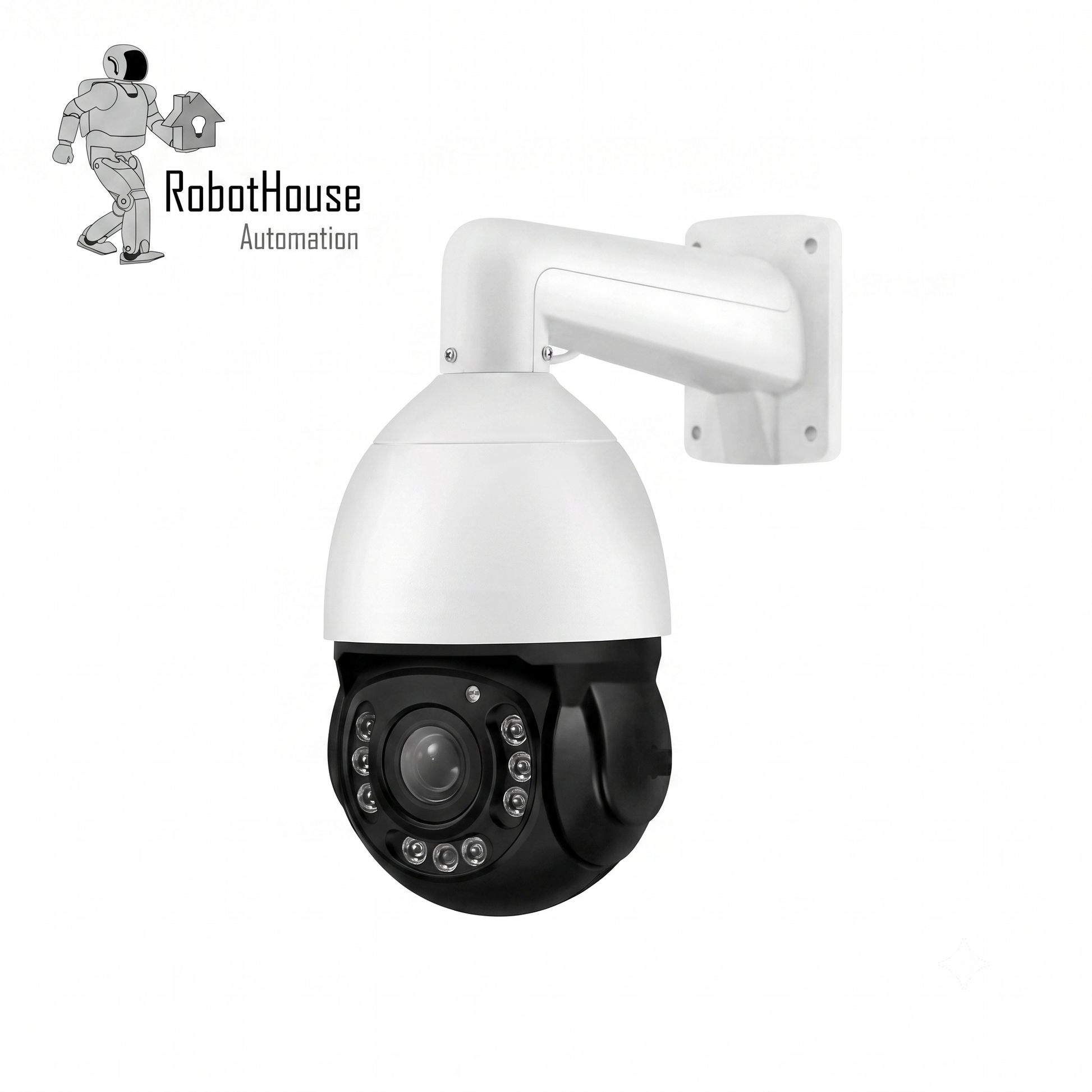

CABLE 6 INCHES 20X COLORFUL AUTO TRACKING IP CAMERA | 8MP

KEY FEATURES

• True Day/Night, 3D DNR, Digital WDR, Backlight Compensation, Auto Gain Control (AGC)

• 3D Intelligent Positioning, 254 Programmable Presets,  vertical 90°, horizon 360°

• Support the P2P on Android, IOS

• Support ONVIF2.6, H.265+/H.265/H.264 main profile dual-stream encoding, two simultaneous video streams

• Standard SDK, CGI, easily integrated with other digital systems

• Colorful video when day and night, will alarm when detect people.

• Support zoom in and out when auto tracking

• Image Sensor: 8.0M Pixels Progressive Scan CMOS

• Chipset:MStar338Q+IMX415, 1/2.8″CMOS

• Signal System: PAL/NTSC

• Focal Length: 20X Optical Zoom (F=4.8mm-86.4mm), 10X Digital Zoom, auto focus

• IR LEDs: 1pcs laser IR LEDs, 8pcs smart IR array LEDs, 8pcs white LEDs, IR distance 150m

• Aperture Range: F1.5~F1.9

• Angle of View: 55.3° (wide)/5.8°(tele)

• Zoom Speed: approximately 3s (Optical Wide-Tele)

• Image Resolution: Main stream: 8MP 20FPS@3840x2160, 25FPS@3072x2048, 2592x1944, 30FPS@(2560x1440, 2304x1296, 1920x1080, 1280x720), substream: 640x480@(1-25(30)fps), 480x3601@(25(30)fps), 352x288@(1-25(30)fps), 176x144@(1-25(30)fps)

• Mininum Illumination: 0.05Lux@(F1.6, AGC ON) B/W: 0.01Lux@(F1.6, AGC ON)

• Wide Dynamic Range: Digital WDR, ≥100dB

• S/N ratio: ≥50dB (AGC OFF)

• AGC: Auto/Manual

• White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight Lamp/Sodium Lamp

• Digital Noise Reduction: DNR, 3DNR

• Exposure Mode: Auto/Manual/Shutter Mode (shutter range variable)

• Shutter Speed: 1/2-1/20,000s

• Day/Night/External Control: IR Cut Filter

• Number of Preset: 254

• Auto tracking, TF card slot (512G max), two way audio, POE

• PTZ Function: 8 patrols, 8 patterns

• Streams: Dual streams

• Bitrate: CBR/VBR, bitrate: 32Kbps~10Mbps variable

• Video Compression: H.265+/H.265/H.264 Main Profile

• Audio Compression: G711A

• OSD: support zoom, camera name, time display, adjustable OSD position

• APP: Videolink

• Intelligent Alarm: humanoid detection, vehicle detection, motion detection, shadow alarm, network cable break, IP address conflict

• Privacy Zone Masking: 4 area

• Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, P2P, ONVIF2.6

• Power Supply: 12VDC2A

• Package Size: 24x17.5x28.5cm

• Working Temperature: -30°C ~60°C, Humidity≤90%RH
