RobotHouse Automation

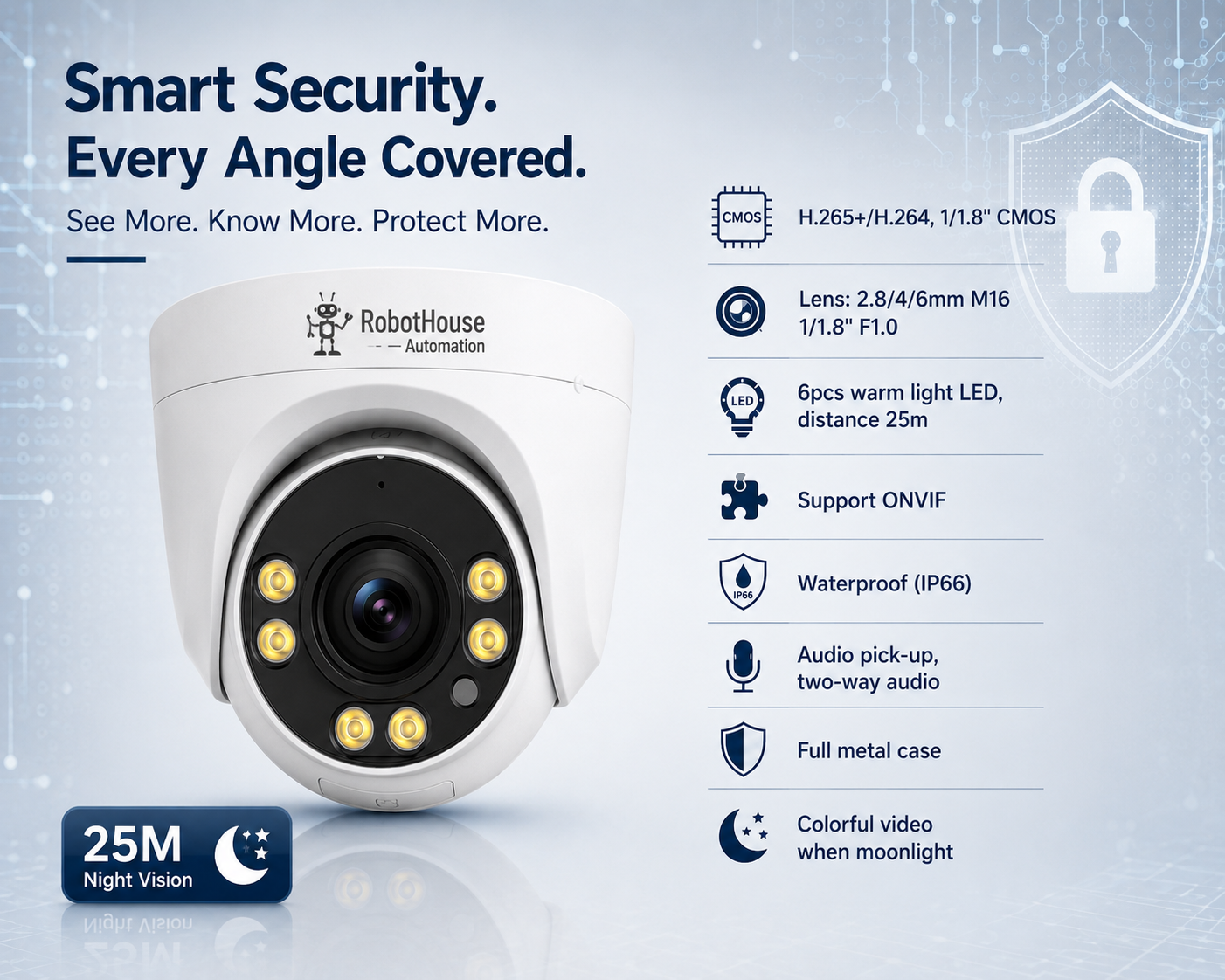

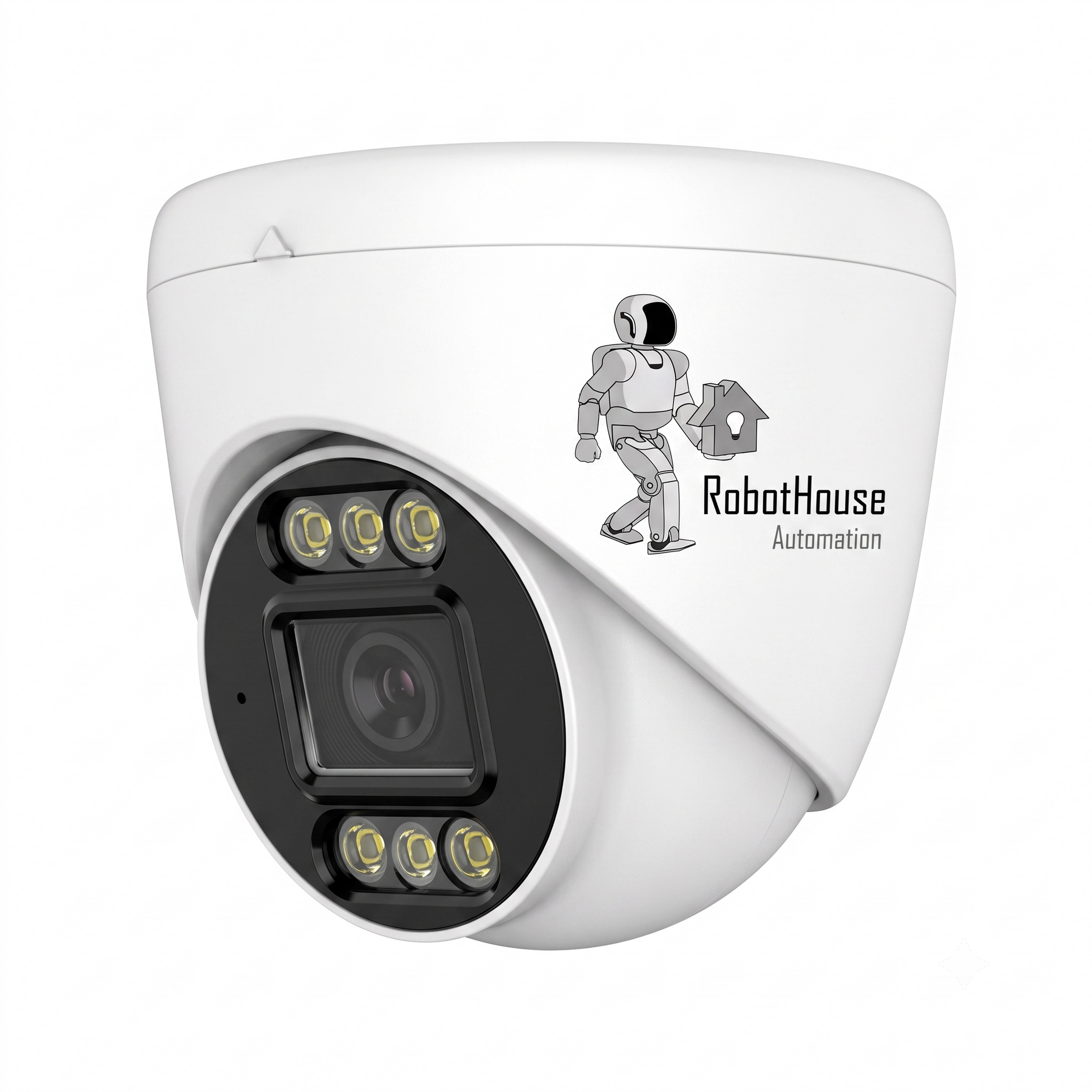

COLORFUL IP CAMERA | 8MP | Plastic case Camera

COLORFUL IP CAMERA | 8MP | Plastic case Camera

Regular price $0.00 CAD
Regular price Sale price $0.00 CAD
Sale Sold out
Click Here To Request A Quote

Full metal case
Camera
Imaging Sensor: 5MP, H.265+, Mstar SSC377D+GC4653, 1/3″CMOS
Scanning Mode: Progressive scanning
Illumination: Color 0.01Lux@F1.2, black/white: 0.005Lux@F1.2, IR on 0 lux
Lens: 5 megapizel 3.6mm, 6mm, 8mm fixed focus CS lens
Day and Night Switch: IR-CUT dual optical filters auto switch in day and night
DNR: 3D-DNR
IR Source: 4pcs warm light LED
Effective Night Vision Distance: 25 meters (measured value without light condition)
P2P, audio pick-up, two-way audio, WDR 128db, S/N ratio 50db, FTP, WIFI, TF card slot, waterproof
Privacy Mask: 4
Shutter Speed:1/(10-10000)s
Standard Compression
Image Compression: H.264
Video Compression: H265+/H.265/H.264, support dual-stream, AVI format, support stream 32Kbps~3.5Mbps adjustable, support CBR/VBR
Max Image Size: 2592x1944
Frame Rate: 2592x1944@25fps, 2560x1440@25fps, 3MP/2048x1536@20fps, 1080P/720P/D1@25fps
Function
Interface Protocol: HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF2.6
Intelligent Alarm: Motion detection, humanoid detection, shadow alarm, starlight, network cable break, IP address conflict
PoE: IEEE802.3at/af standard, PoE/In: 37-57V (15.4W), DC/OUT: 12V/1A (12.95W)
Lightning Protection: Power, network, PoE comprehensive lightning protection, in line with national standards GB/T17626.5, the international standard IEC61000-4-5
Features: Support WEB configure, support for OSD, support video transmission, support mobile surveillance, support for mobile detection alarm center after the screen pop-up reminders and linkage, supports JPEG capture, provide perfect the SDK development package
Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.
Basic Parameter
Power Input: DC 12V±10%
Power Consumption: 1W (IR off)/9.5W (IR on), 1.1W/9.6W (IR on)
Work Environment: -40℃~85℃, humidity is less than 95% (no condensation)
