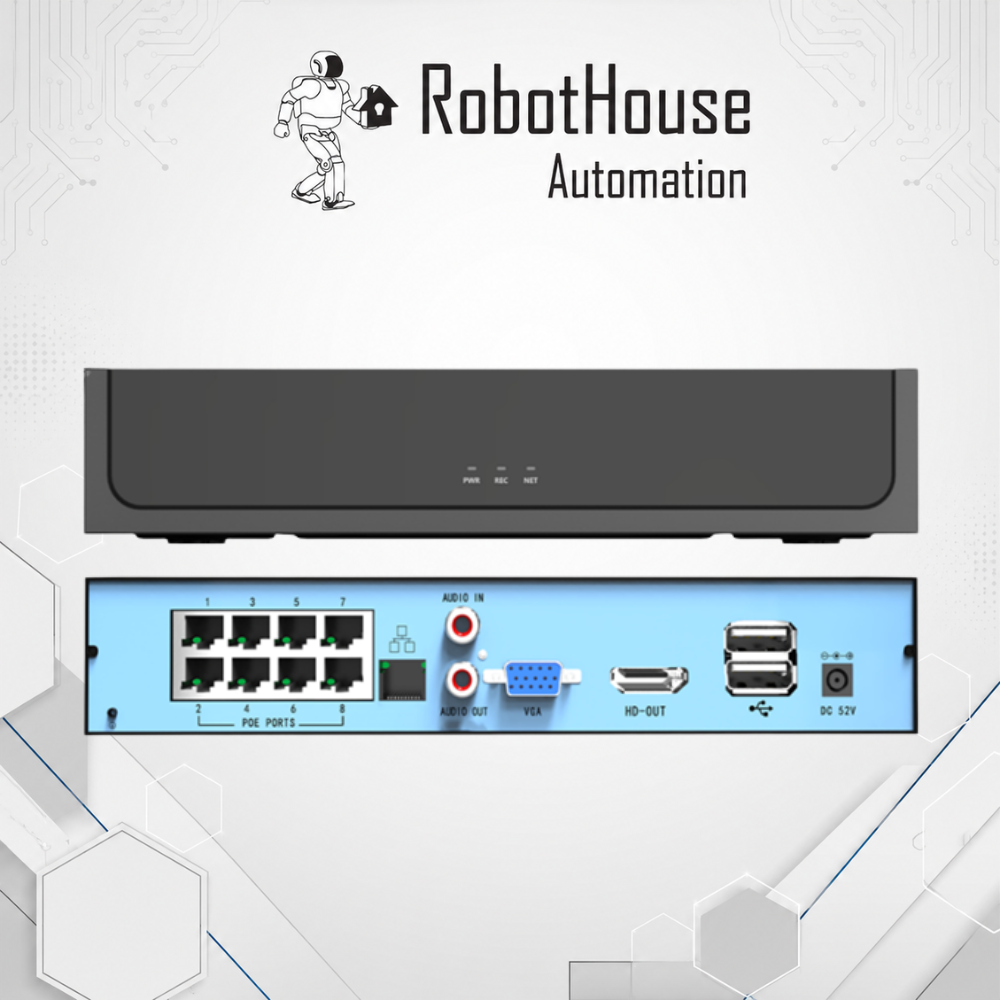

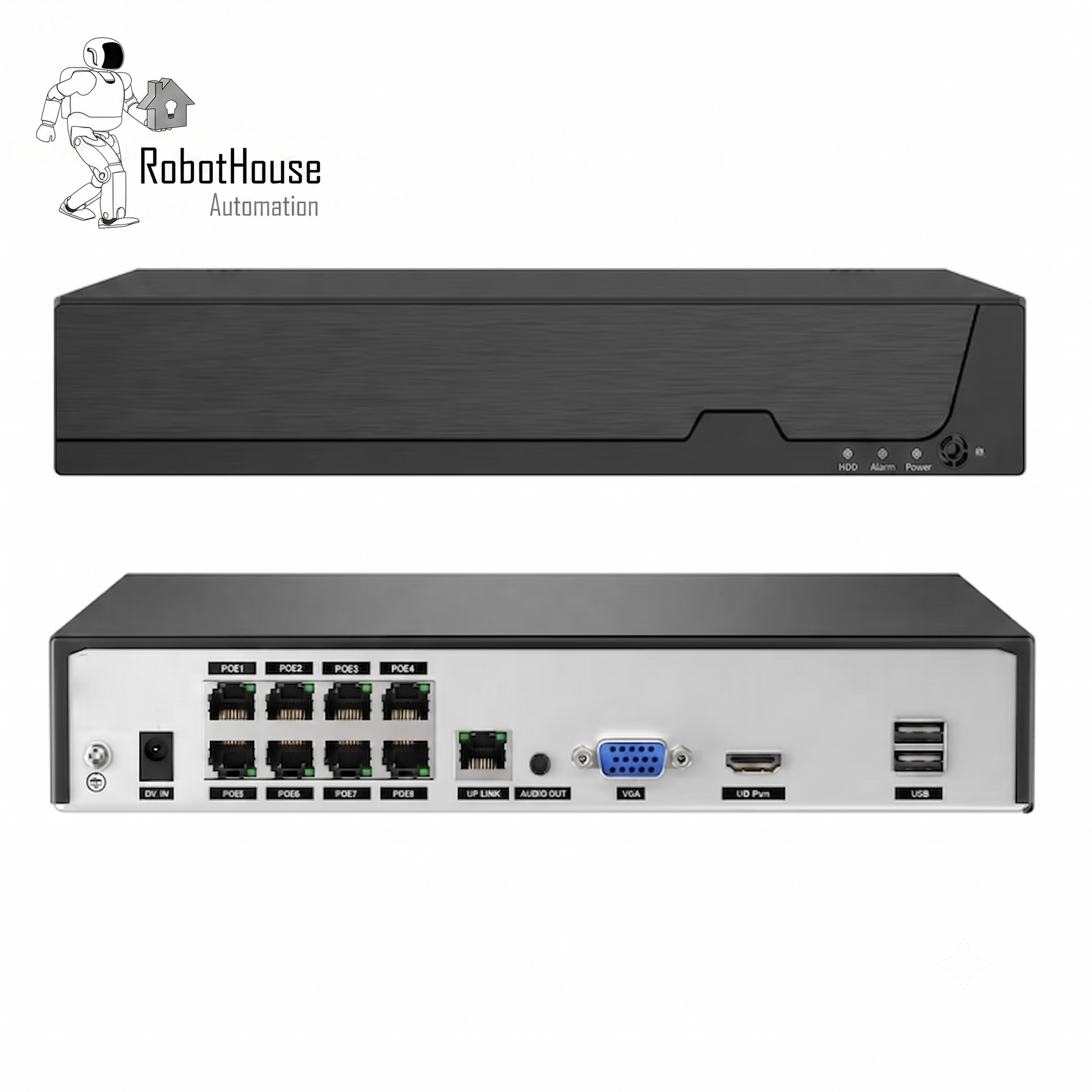

8-CHANNEL POE NETWORK VIDEO RECORDER (NVR) - HDD not included

KEY FEATURES

System Structure: Embedded LINUX design, pure hardware decode, watchdog, hard disk storage, HDMI HD display, IP network video access

Main processor: Hi3536D

PoE Interface: 8 PoE ports IEEE802.3 at 30W max, support 120m transmission, support over length cable 250m

Video Input: Support 8*12MP HD IPC access, each channel support dual stream access, support auto search, add recording, preview and without debugging

Access bandwidth: 64Mbps

Video Output: 1channel HDMI output, 1 channel VGA output, homology with HDMI support

Support videolink client preview, APP preview and seconds connection

Video Recording Resolution: Support 3840x2160 max

Video Capacity: Support H.265+/H.265/H.264 decoding

NVR local recording playback support 1CH 12MP/8MP, 4CH 4MP

Audio: Standard G.711, support audio and video recording, support HDMI output channel preview and playback audio and video, Videolink audio and video preview and playback

Storage: 1*SATA hard disk interface, support 8TB max capacity

Support schedule record, motion detection linkage record

Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup

User: Local maximum support for 16 users

Network Interface: 1*RJ45 Ethernet interface, support 10/100M self-adaption, support TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, SMTP and so on protocols

Peripheral Interface: 2*USB2.0 interface (rear), support for the mouse, USB upgrade, import and export

Front Panel: 1*power, 1*record, 1*network indicator light

Business Function: Support preview/recording/forward/remote service, support alarm linkage, support Videolink client remote control software, support Videolink cloud service

Working Temperature: -10℃～＋55℃

Working Humidity: 10%～90%

Power Supply: DC+12V/2A power

Optional: Support buzzer

Warranty & Support: 1- Year Warranty for reliable performance and customer support
